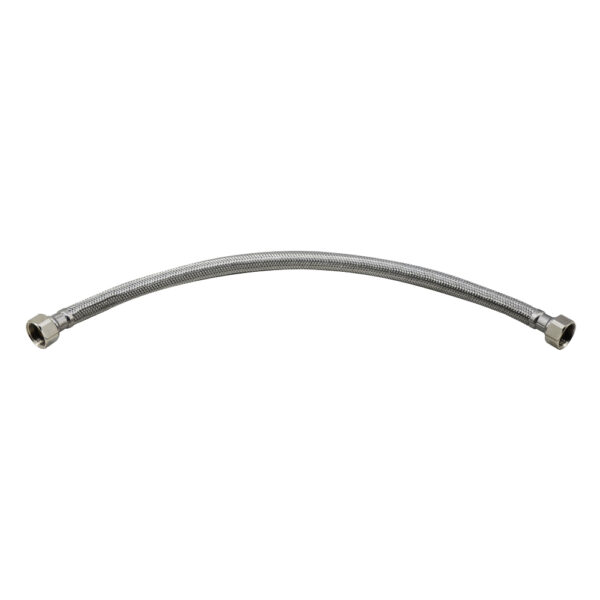

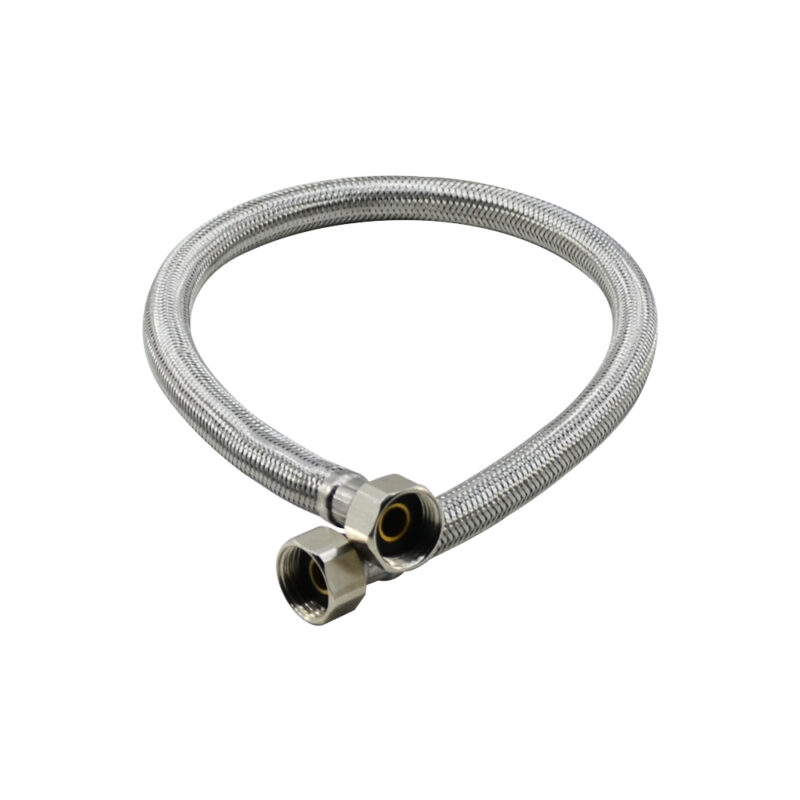

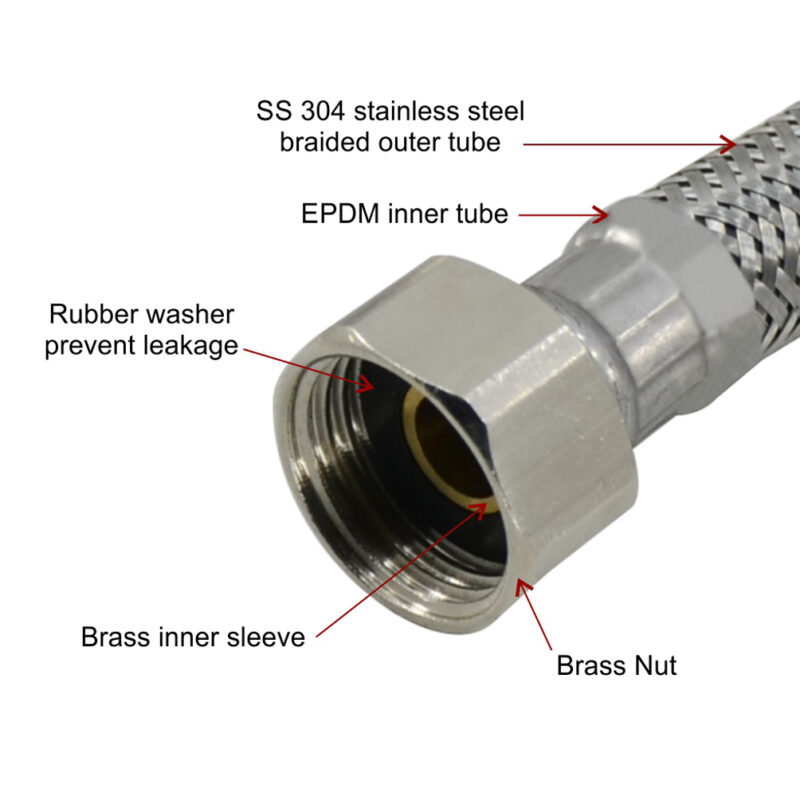

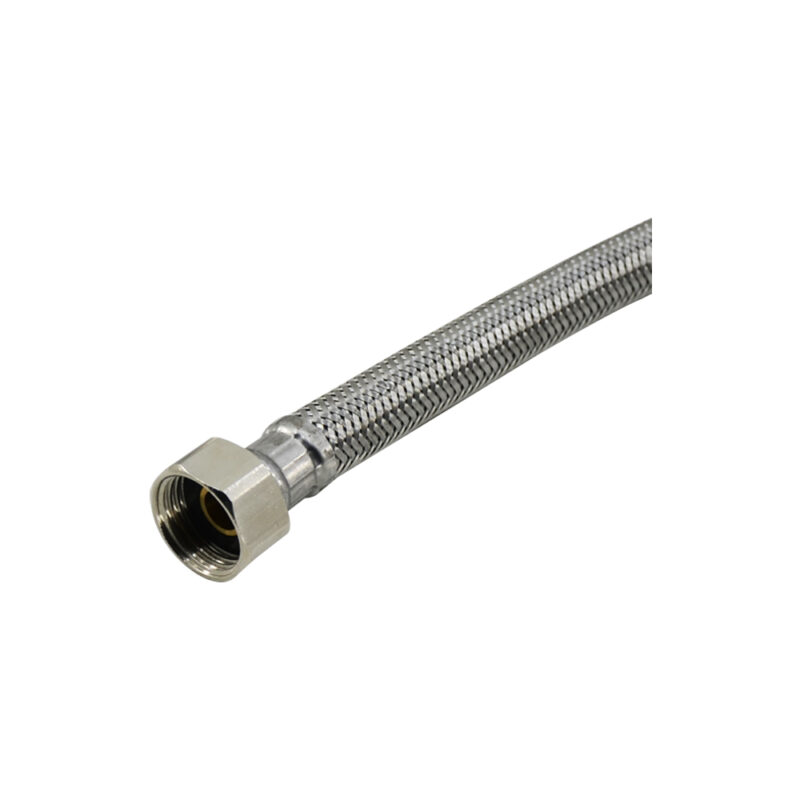

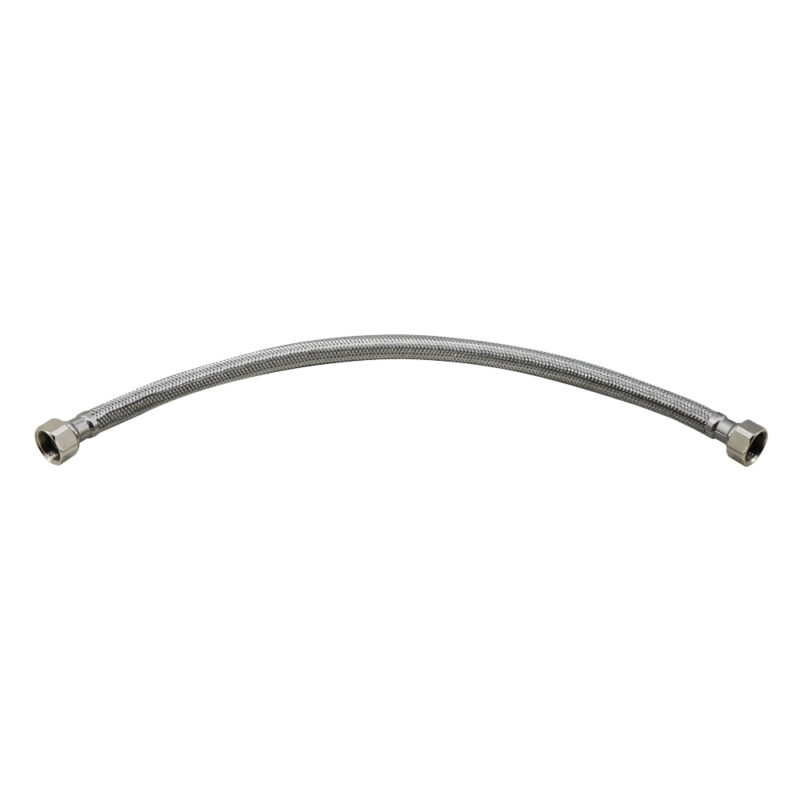

Connection Pipe Braided – SS304 (Italia) For Geysers & Pressure Pump
| Art No. | Thread Size 1 | Type | Thread Size 2 | Type | Length | Material | Finish | ₹ |
|---|---|---|---|---|---|---|---|---|
| 3012 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 300mm (12”) | SS 304 | Steel | 215 |
| 3018 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 450mm (18”) | SS 304 | Steel | 245 |
| 3024 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 600mm (24”) | SS 304 | Steel | 270 |
| 3030 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 750mm (30”) | SS 304 | Steel | 325 |
| 3036 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 900mm (36”) | SS 304 | Steel | 340 |
| 3042 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 1500mm (60”) | SS 304 | Steel | 460 |
| 3048 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 1200mm (48”) | SS 304 | Steel | 430 |
| 3049 | 10mm (3/8”) | Inner | 10mm (3/8”) | Outer | 300mm (12”) | SS 304 | Steel | 235 |
| 3051 | 10mm (3/8”) | Inner | 10mm (3/8”) | Inner | 450mm (18”) | SS 304 | Steel | 245 |
| 3052 | 10mm (3/8”) | Inner | 10mm (3/8”) | Inner | 600mm (24”) | SS 304 | Steel | 305 |
| 3053 | 10mm (3/8”) | Inner | 10mm (3/8”) | Inner | 300mm (12”) | SS 304 | Steel | 210 |
| 3055 | 15mm (1/2”) | Inner | 15mm (1/2”) | Outer | 450mm (18”) | SS 304 | Steel | 265 |
| 3057 | 15mm (1/2”) | Inner | 15mm (1/2”) | Outer | 600mm (24”) | SS 304 | Steel | 325 |
| 3061 | 20mm (3/4”) | Inner | 20mm (3/4”) | Inner | 450mm (18”) | SS 304 | Steel | 450 |
| 3063 | 20mm (3/4”) | Inner | 20mm (3/4”) | Inner | 600mm (24”) | SS 304 | Steel | 495 |
| 3100 | 10mm (3/8”) | Inner | 15mm (1/2”) | Inner | 450mm (18”) | SS 304 | Steel | 280 |
Connection Pipe Braided – SS304 (Italia) For Geysers & Pressure Pump
| Art No. | Thread Size 1 | Type | Thread Size 2 | Type | Length | Material | Finish | ₹ |
|---|---|---|---|---|---|---|---|---|
| 3012 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 300mm (12”) | SS 304 | Steel | 215 |
| 3018 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 450mm (18”) | SS 304 | Steel | 245 |
| 3024 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 600mm (24”) | SS 304 | Steel | 270 |
| 3030 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 750mm (30”) | SS 304 | Steel | 325 |
| 3036 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 900mm (36”) | SS 304 | Steel | 340 |
| 3042 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 1500mm (60”) | SS 304 | Steel | 460 |
| 3048 | 15mm (1/2”) | Inner | 15mm (1/2”) | Inner | 1200mm (48”) | SS 304 | Steel | 430 |
| 3049 | 10mm (3/8”) | Inner | 10mm (3/8”) | Outer | 300mm (12”) | SS 304 | Steel | 235 |
| 3051 | 10mm (3/8”) | Inner | 10mm (3/8”) | Inner | 450mm (18”) | SS 304 | Steel | 245 |
| 3052 | 10mm (3/8”) | Inner | 10mm (3/8”) | Inner | 600mm (24”) | SS 304 | Steel | 305 |
| 3053 | 10mm (3/8”) | Inner | 10mm (3/8”) | Inner | 300mm (12”) | SS 304 | Steel | 210 |
| 3055 | 15mm (1/2”) | Inner | 15mm (1/2”) | Outer | 450mm (18”) | SS 304 | Steel | 265 |
| 3057 | 15mm (1/2”) | Inner | 15mm (1/2”) | Outer | 600mm (24”) | SS 304 | Steel | 325 |
| 3061 | 20mm (3/4”) | Inner | 20mm (3/4”) | Inner | 450mm (18”) | SS 304 | Steel | 450 |
| 3063 | 20mm (3/4”) | Inner | 20mm (3/4”) | Inner | 600mm (24”) | SS 304 | Steel | 495 |
| 3100 | 10mm (3/8”) | Inner | 15mm (1/2”) | Inner | 450mm (18”) | SS 304 | Steel | 280 |
Feature
- Pressure bearing capacity 8 Bar.
- It’s temperature bearing capacity is 90 degree celsius.
- Inner outer thread pipes can be used as extension in case of long pipe.
Benefits
- Braided pipe are better then PVC pipe with higher pressure & temperature capacity.
- Braiding helps to avoid injury (splashing of hot water over human in case of breakage).
HSN Code73249000
Warranty7 Years
Overview
Feature
- Pressure bearing capacity 8 Bar.
- It’s temperature bearing capacity is 90 degree celsius.
- Inner outer thread pipes can be used as extension in case of long pipe.
Benefits
- Braided pipe are better then PVC pipe with higher pressure & temperature capacity.
- Braiding helps to avoid injury (splashing of hot water over human in case of breakage).
HSN Code73249000
Warranty7 Years
