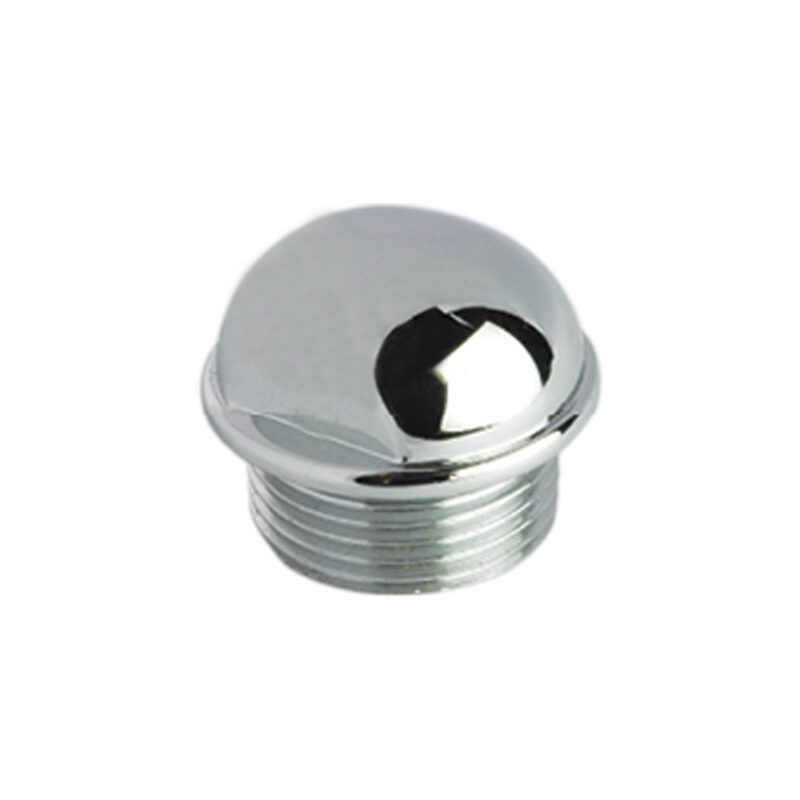

CP Plug
| Art No. | Thread Size | Type | Material | Finish | ₹ |
|---|---|---|---|---|---|
| 24400 | M 8 | Outer | Brass | Raw | 130 |
| 24401 | M 10 | Outer | Brass | Raw | 130 |
| 24402 | 15mm (1/2″) | Outer | Brass | Polished CP | 130 |
| BL 24402 | 15mm (1/2″) | Outer | Brass | Matt Black | 250 |
| G 24402 | 15mm (1/2″) | Outer | Brass | Gold PVD | 330 |
| RG 24402 | 15mm (1/2″) | Outer | Brass | Rose Gold | 330 |
| 24403 | 20mm (3/4″) | Outer | Brass | Polished CP | 315 |
| 24405 | 25mm (1″) | Outer | Brass | Polished CP |
24400 plug for: 3215
24401 plug for: 3218
CP Plug
| Art No. | Thread Size | Type | Material | Finish | ₹ |
|---|---|---|---|---|---|
| 24400 | M 8 | Outer | Brass | Raw | 130 |
| 24401 | M 10 | Outer | Brass | Raw | 130 |
| 24402 | 15mm (1/2″) | Outer | Brass | Polished CP | 130 |
| BL 24402 | 15mm (1/2″) | Outer | Brass | Matt Black | 250 |
| G 24402 | 15mm (1/2″) | Outer | Brass | Gold PVD | 330 |
| RG 24402 | 15mm (1/2″) | Outer | Brass | Rose Gold | 330 |
| 24403 | 20mm (3/4″) | Outer | Brass | Polished CP | 315 |
| 24405 | 25mm (1″) | Outer | Brass | Polished CP |
24400 plug for: 3215
24401 plug for: 3218
Features
- The maximum working pressure is 80 bar.
- The lower range of temperature is – 40 degree celsius and the upper range of temperature 140 celsius.
HSN Code84819090
Overview
Features
- The maximum working pressure is 80 bar.
- The lower range of temperature is – 40 degree celsius and the upper range of temperature 140 celsius.
HSN Code84819090

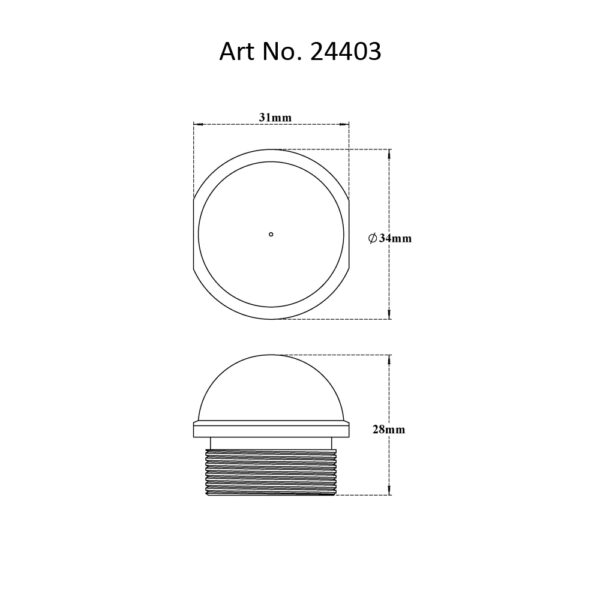

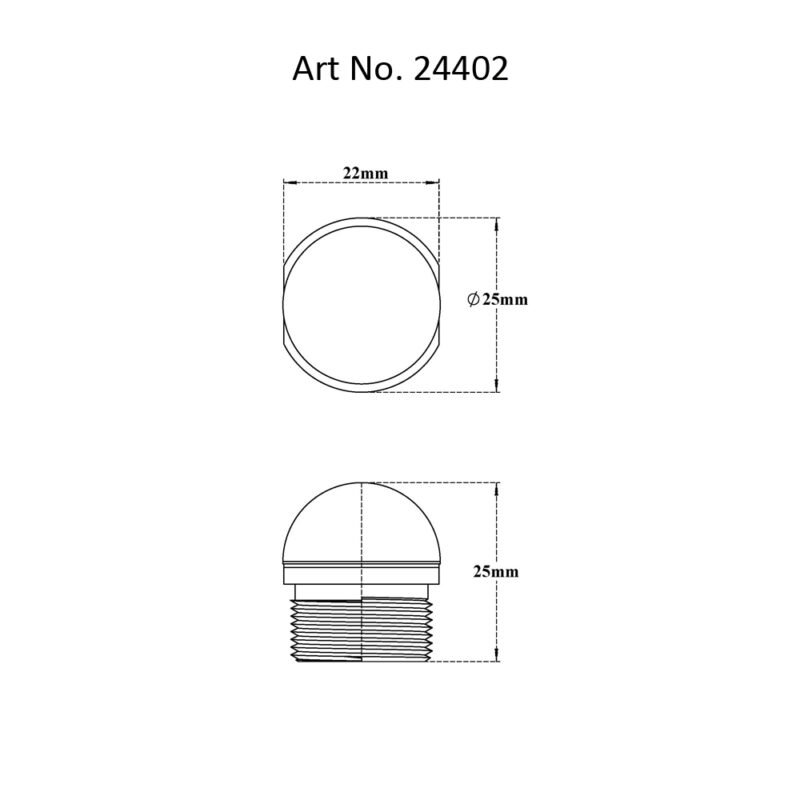

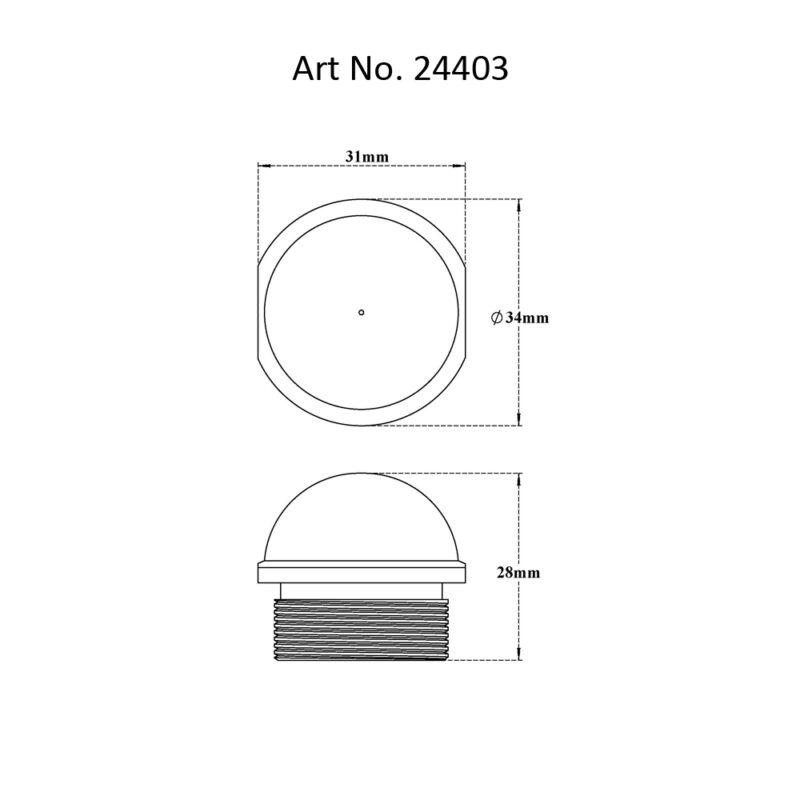

Drawings
