Drain Flat SquareNEW
| Art No. | Length | Width | Finish | Material | Hole For Waste Pipe | ₹ |
|---|---|---|---|---|---|---|
| 39594 | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | No | 295 |
| 39594 S | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | No | 325 |
| BG 39594 | 125mm (5”) | 125mm (5”) | Gold PVD Brushed | SS 304 | No | 1790 |
| BRG 39594 | 125mm (5”) | 125mm (5”) | Rose Gold Brushed | SS 304 | No | 1790 |
| BFG 39594 | 125mm (5”) | 125mm (5”) | French Gold Brushed | SS 304 | No | 1790 |
| BBZ 39594 | 125mm (5”) | 125mm (5”) | Brushed Bronze | SS 304 | No | 1890 |
| BL 39594 | 125mm (5”) | 125mm (5”) | Matt Black | SS 304 | No | 750 |
| BL 39594 S | 125mm (5”) | 125mm (5”) | Black | SS 304 | No | 540 |
| 39595 | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | Yes | 295 |
| 39595 S | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | Yes | 325 |
| BG 39595 | 125mm (5”) | 125mm (5”) | Gold PVD Brushed | SS 304 | Yes | 1790 |
| BRG 39595 | 125mm (5”) | 125mm (5”) | Rose Gold Brushed | SS 304 | Yes | 1790 |
| BFG 39595 | 125mm (5”) | 125mm (5”) | French Gold Brushed | SS 304 | Yes | 1790 |
| BL 39595 | 125mm (5”) | 125mm (5”) | Matt Black | SS 304 | Yes | 750 |
| 39595 D | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | Yes(2 Hole) | 350 |
Drain Flat SquareNEW
| Art No. | Length | Width | Finish | Material | Hole For Waste Pipe | ₹ |
|---|---|---|---|---|---|---|
| 39594 | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | No | 295 |
| 39594 S | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | No | 325 |
| BG 39594 | 125mm (5”) | 125mm (5”) | Gold PVD Brushed | SS 304 | No | 1790 |
| BRG 39594 | 125mm (5”) | 125mm (5”) | Rose Gold Brushed | SS 304 | No | 1790 |
| BFG 39594 | 125mm (5”) | 125mm (5”) | French Gold Brushed | SS 304 | No | 1790 |
| BBZ 39594 | 125mm (5”) | 125mm (5”) | Brushed Bronze | SS 304 | No | 1890 |
| BL 39594 | 125mm (5”) | 125mm (5”) | Matt Black | SS 304 | No | 750 |
| BL 39594 S | 125mm (5”) | 125mm (5”) | Black | SS 304 | No | 540 |
| 39595 | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | Yes | 295 |
| 39595 S | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | Yes | 325 |
| BG 39595 | 125mm (5”) | 125mm (5”) | Gold PVD Brushed | SS 304 | Yes | 1790 |
| BRG 39595 | 125mm (5”) | 125mm (5”) | Rose Gold Brushed | SS 304 | Yes | 1790 |
| BFG 39595 | 125mm (5”) | 125mm (5”) | French Gold Brushed | SS 304 | Yes | 1790 |
| BL 39595 | 125mm (5”) | 125mm (5”) | Matt Black | SS 304 | Yes | 750 |
| 39595 D | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | Yes(2 Hole) | 350 |
Features
- SS 304 material ensures anti corrosive product.
- Heavy cover plate (1.2mm sheet thickness)
- Install indoor or outdoor (parking or open spaces), thick sheet won’t bend even if the bike tyre runs on top of it.
- 93 mm socket fits traps or pipes 100 mm (4″) & above.
- PVC coated Drain
Advantages of PVC coated sheet metal product.
- Reduces damage to finish during transportation or installation.
- Plumber (installer) uses cement or white cement for installation of drains which often gets spill over the drain, peel off PVC coating after installation ensures no damage to the finish.
- Reduces the cleaning process after installation.
HSN Code73269030
Warranty7 Years
Overview
Features
- SS 304 material ensures anti corrosive product.
- Heavy cover plate (1.2mm sheet thickness)
- Install indoor or outdoor (parking or open spaces), thick sheet won’t bend even if the bike tyre runs on top of it.
- 93 mm socket fits traps or pipes 100 mm (4″) & above.
- PVC coated Drain
Advantages of PVC coated sheet metal product.
- Reduces damage to finish during transportation or installation.
- Plumber (installer) uses cement or white cement for installation of drains which often gets spill over the drain, peel off PVC coating after installation ensures no damage to the finish.
- Reduces the cleaning process after installation.
HSN Code73269030
Warranty7 Years

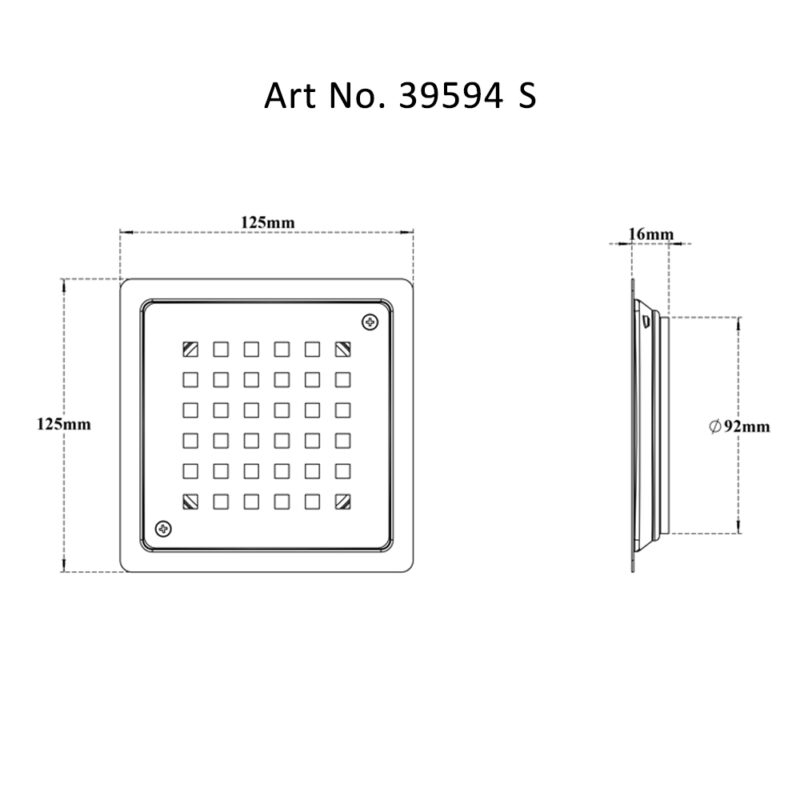

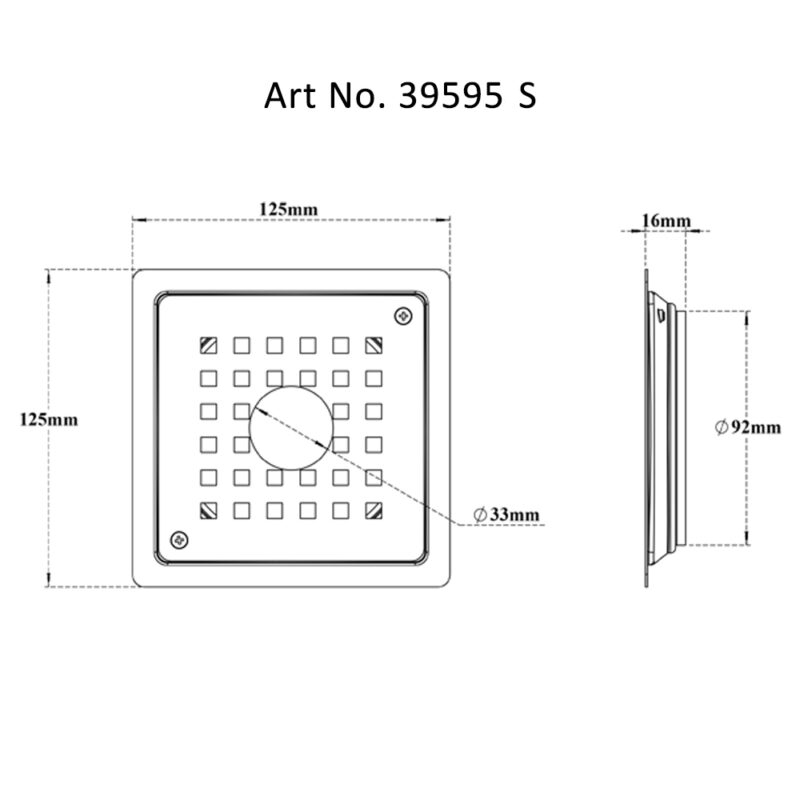

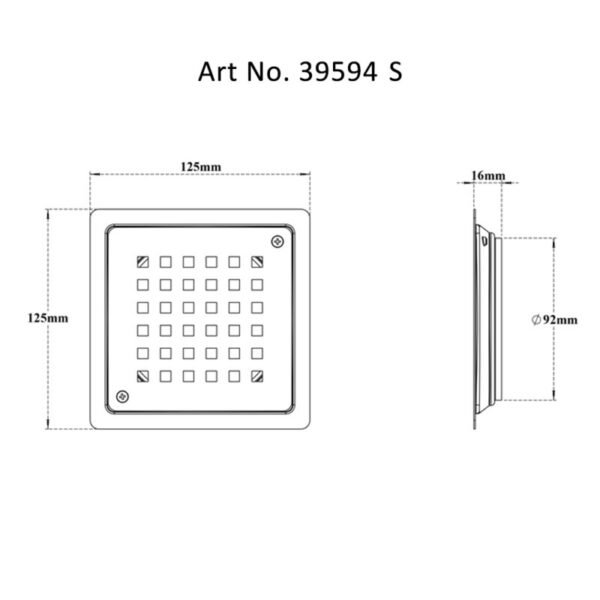

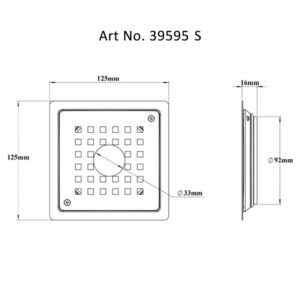

Line Drawings
