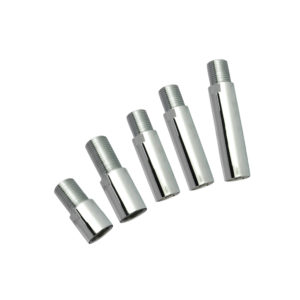

Extension Nipple
| Art No. | Thread Size 1 & 2 | Type 1 & 2 | Length | Material | Finish | Allen Key | ₹ |
|---|---|---|---|---|---|---|---|
| 22011 A | 15mm (1/2″) | Inner, Outer | 25mm (1″) | Brass | Polished CP | Yes | 86 |
| 22012 A | 15mm (1/2″) | Inner, Outer | 40mm (1-1/2″) | Brass | Polished CP | Yes | 126 |
| 22013 A | 15mm (1/2″) | Inner, Outer | 50mm (2″) | Brass | Polished CP | Yes | 152 |
| 22014 | 15mm (1/2″) | Inner, Outer | 65mm (2-1/2″) | Brass | Polished CP | No | 186 |
| 22014 A | 15mm (1/2″) | Inner, Outer | 65mm (2-1/2″) | Brass | Polished CP | Yes | 186 |
| 22015 | 15mm (1/2″) | Inner, Outer | 75mm (3″) | Brass | Polished CP | No | 230 |
| 22015 B | 15mm (1/2″) | Inner, Outer | 75mm (3″) | Brass | Polished CP | No | 230 |
| 22015 L | 15mm (1/2″) | Inner, Outer | 75mm (3″) | Brass | Polished CP | No | 230 |
| 22016 | 15mm (1/2″) | Inner, Outer | 100mm (4″) | Brass | Polished CP | No | 315 |
| 22016 L | 15mm (1/2″) | Inner, Outer | 100mm (4″) | Brass | Polished CP | No | 315 |
| 22018 | 15mm (1/2″) | Inner, Outer | 150mm (6″) | Brass | Polished CP | No | 500 |
| 22021 | 15mm (1/2″) | Inner, Outer | 225mm (9″) | Brass | Polished CP | No | 700 |
| 22110 | 20mm (3/4″) | Inner, Outer | 25mm (1″) | Brass | Polished CP | No | 175 |
| 22114 | 20mm (3/4″) | Inner, Outer | 65mm (2-1/2″) | Brass | Polished CP | No | 299 |
Extension Nipple
| Art No. | Thread Size 1 & 2 | Type 1 & 2 | Length | Material | Finish | Allen Key | ₹ |
|---|---|---|---|---|---|---|---|
| 22011 A | 15mm (1/2″) | Inner, Outer | 25mm (1″) | Brass | Polished CP | Yes | 86 |
| 22012 A | 15mm (1/2″) | Inner, Outer | 40mm (1-1/2″) | Brass | Polished CP | Yes | 126 |
| 22013 A | 15mm (1/2″) | Inner, Outer | 50mm (2″) | Brass | Polished CP | Yes | 152 |
| 22014 | 15mm (1/2″) | Inner, Outer | 65mm (2-1/2″) | Brass | Polished CP | No | 186 |
| 22014 A | 15mm (1/2″) | Inner, Outer | 65mm (2-1/2″) | Brass | Polished CP | Yes | 186 |
| 22015 | 15mm (1/2″) | Inner, Outer | 75mm (3″) | Brass | Polished CP | No | 230 |
| 22015 B | 15mm (1/2″) | Inner, Outer | 75mm (3″) | Brass | Polished CP | No | 230 |
| 22015 L | 15mm (1/2″) | Inner, Outer | 75mm (3″) | Brass | Polished CP | No | 230 |
| 22016 | 15mm (1/2″) | Inner, Outer | 100mm (4″) | Brass | Polished CP | No | 315 |
| 22016 L | 15mm (1/2″) | Inner, Outer | 100mm (4″) | Brass | Polished CP | No | 315 |
| 22018 | 15mm (1/2″) | Inner, Outer | 150mm (6″) | Brass | Polished CP | No | 500 |
| 22021 | 15mm (1/2″) | Inner, Outer | 225mm (9″) | Brass | Polished CP | No | 700 |
| 22110 | 20mm (3/4″) | Inner, Outer | 25mm (1″) | Brass | Polished CP | No | 175 |
| 22114 | 20mm (3/4″) | Inner, Outer | 65mm (2-1/2″) | Brass | Polished CP | No | 299 |
HSN Code84819090
Overview
HSN Code84819090

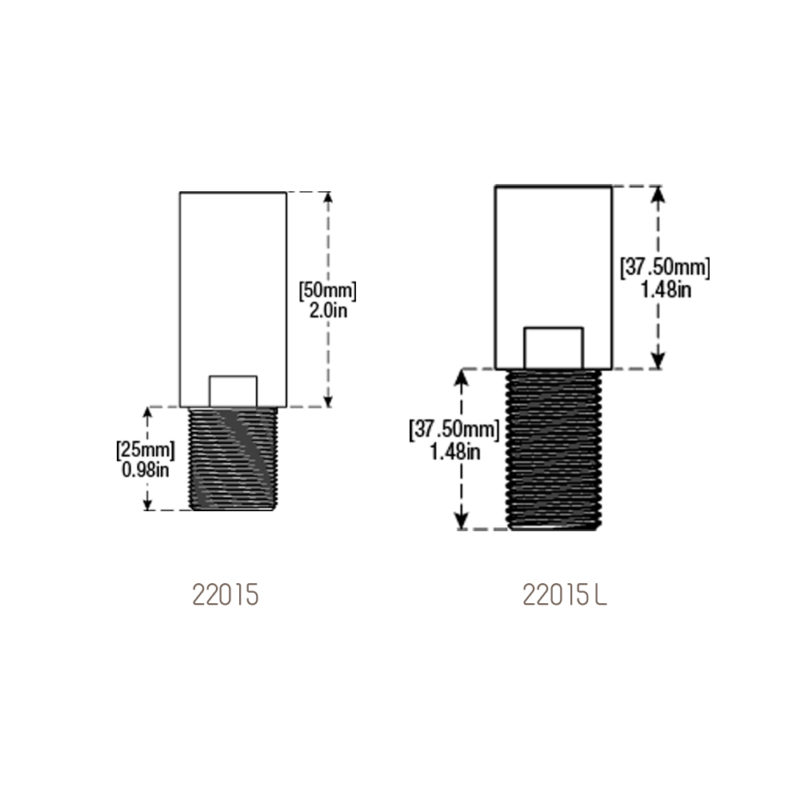

Line Drawing
