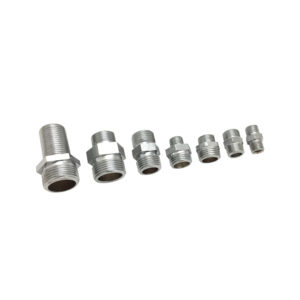

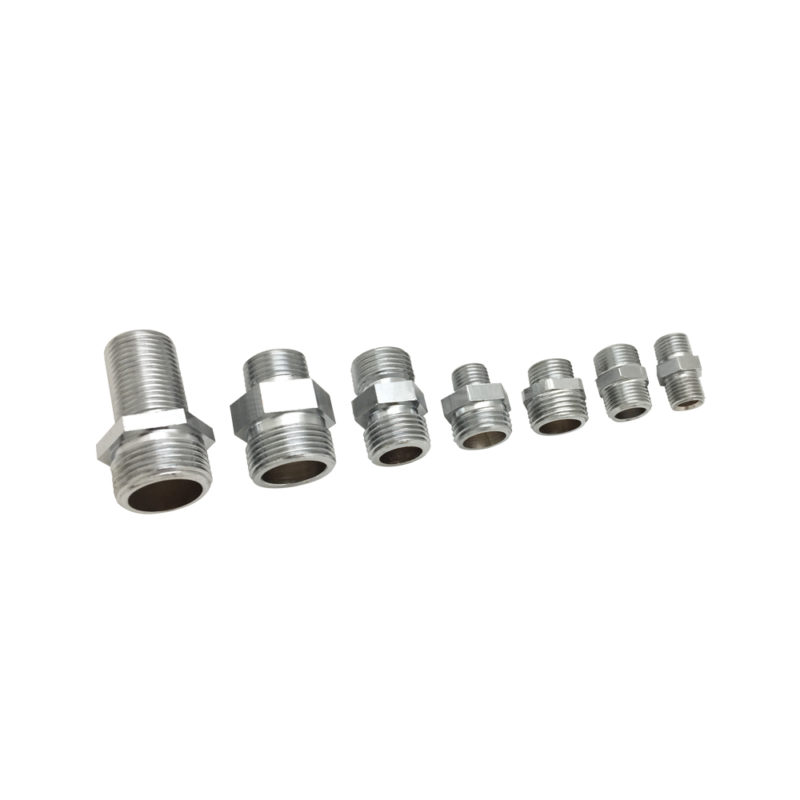

Hexagonal (Hex) Nipple
| Art No. | Thread Size 1 | Type | Thread Size 2 | Type | Length | Material | Finish | ₹ |
|---|---|---|---|---|---|---|---|---|
| 24102 | 15mm (1/2″) | Outer | 15mm (1/2″) | Outer | 35mm | Brass | CP | 84 |
| G 24102 | 15mm (1/2″) | Outer | 15mm (1/2″) | Outer | 35mm | Brass | Gold PVD | 300 |
| 24103 | 20mm (3/4″) | Outer | 20mm (3/4″) | Outer | 38mm | Brass | CP | 170 |
| 24104 | 10mm (3/8″) | Outer | 15mm (1/2″) | Outer | 20mm (3/4″) | Brass | CP | 85 |
| 24105 | 20mm (3/4″) | Outer | 15mm (1/2″) | Outer | 40mm | Brass | CP | 190 |
| 24106 | 10mm (3/8″) | Outer | 10mm (3/8″) | Outer | 25mm (1″) | Brass | CP | 100 |
| 24108 | 25mm (1″) | Outer | 25mm (1″) | Outer | 38mm | Brass | CP | 370 |
Hexagonal (Hex) Nipple
| Art No. | Thread Size 1 | Type | Thread Size 2 | Type | Length | Material | Finish | ₹ |
|---|---|---|---|---|---|---|---|---|
| 24102 | 15mm (1/2″) | Outer | 15mm (1/2″) | Outer | 35mm | Brass | CP | 84 |
| G 24102 | 15mm (1/2″) | Outer | 15mm (1/2″) | Outer | 35mm | Brass | Gold PVD | 300 |
| 24103 | 20mm (3/4″) | Outer | 20mm (3/4″) | Outer | 38mm | Brass | CP | 170 |
| 24104 | 10mm (3/8″) | Outer | 15mm (1/2″) | Outer | 20mm (3/4″) | Brass | CP | 85 |
| 24105 | 20mm (3/4″) | Outer | 15mm (1/2″) | Outer | 40mm | Brass | CP | 190 |
| 24106 | 10mm (3/8″) | Outer | 10mm (3/8″) | Outer | 25mm (1″) | Brass | CP | 100 |
| 24108 | 25mm (1″) | Outer | 25mm (1″) | Outer | 38mm | Brass | CP | 370 |
Features
- The Maximum working pressure is 80 Bar.
- The lower range of temperature is – 40 degree celsius and the upper range of temperature is 140 degree celsius.
Benefits
- Hex nipple is used where two female threads are need to connect each other.
HSN Code84819090
Overview
Features
- The Maximum working pressure is 80 Bar.
- The lower range of temperature is – 40 degree celsius and the upper range of temperature is 140 degree celsius.
Benefits
- Hex nipple is used where two female threads are need to connect each other.
HSN Code84819090
