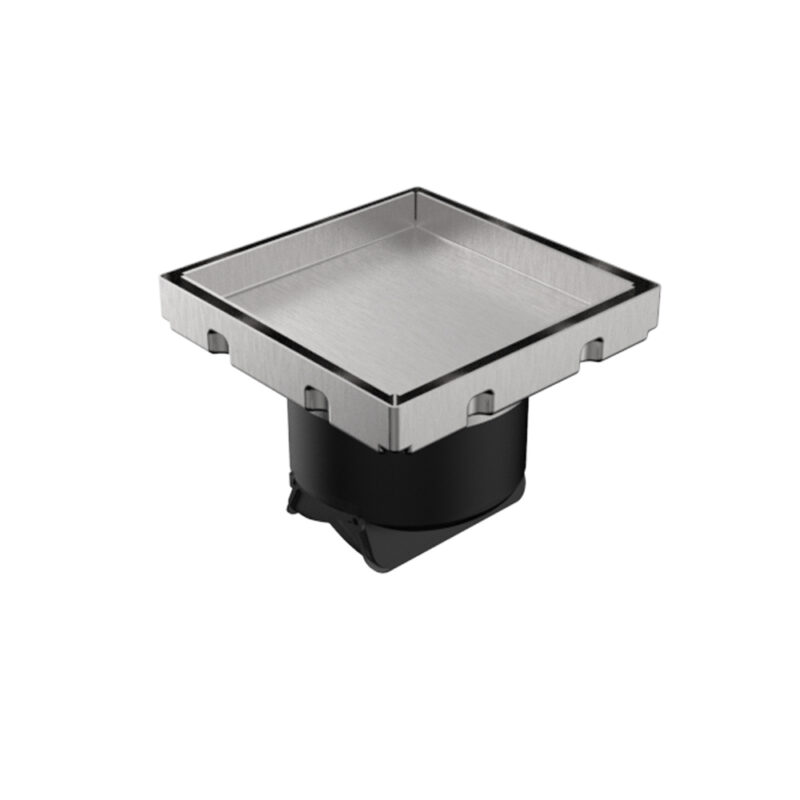

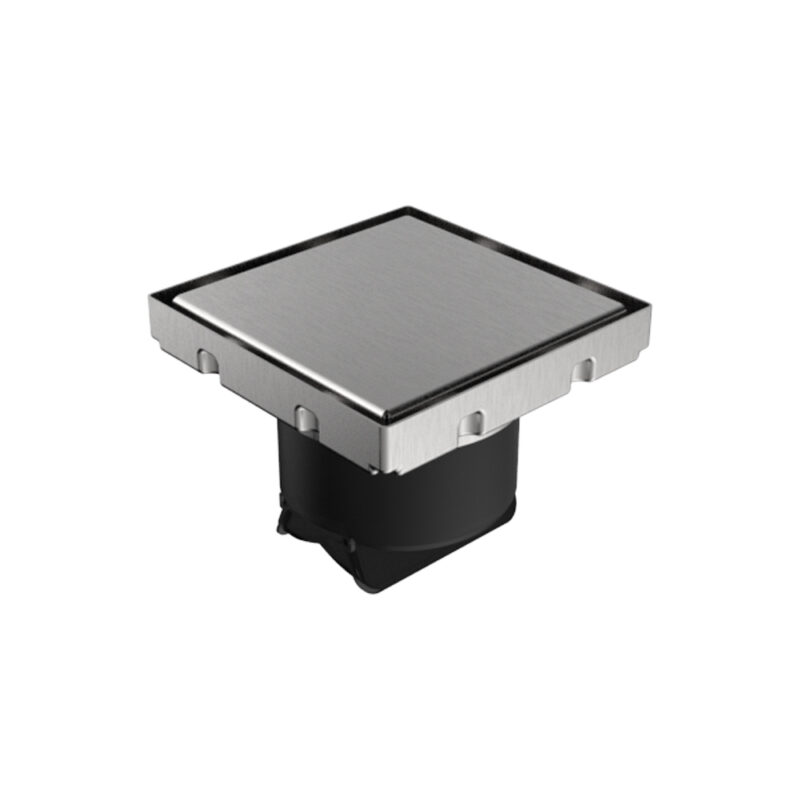

Tile/Marble Drain
| Art No. | Length | Width | Finish | Material | Hole For Waste Pipe | ₹ |
|---|---|---|---|---|---|---|
| 39695 | 100mm (4”) | 100mm (4”) | Brushed | SS 304 | No | 39700 | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | No | 1195 |
| BL 39700 | 125mm (5”) | 125mm (5”) | Matt Black | SS 304 | No | 1650 |
| BG 39700 | 125mm (5”) | 125mm (5”) | Gold PVD Brushed | SS 304 | No | 2150 |
| BRG 39700 | 125mm (5”) | 125mm (5”) | Rose Gold Brushed | SS 304 | No | 2590 |
| BBZ 39700 | 125mm (5”) | 125mm (5”) | Brushed Bronze | SS 304 | No | 3320 |
| 39720 | 150mm (6”) | 150mm (6”) | Brushed | SS 304 | No | 1550 |
| BL 39720 | 150mm (6”) | 150mm (6”) | Matt Black | SS 304 | No | 1880 |
| BG 39720 | 150mm (6”) | 150mm (6”) | Gold PVD Brushed | SS 304 | No | 2850 |
Tile/Marble Drain
| Art No. | Length | Width | Finish | Material | Hole For Waste Pipe | ₹ |
|---|---|---|---|---|---|---|
| 39695 | 100mm (4”) | 100mm (4”) | Brushed | SS 304 | No | 39700 | 125mm (5”) | 125mm (5”) | Brushed | SS 304 | No | 1195 |
| BL 39700 | 125mm (5”) | 125mm (5”) | Matt Black | SS 304 | No | 1650 |
| BG 39700 | 125mm (5”) | 125mm (5”) | Gold PVD Brushed | SS 304 | No | 2150 |
| BRG 39700 | 125mm (5”) | 125mm (5”) | Rose Gold Brushed | SS 304 | No | 2590 |
| BBZ 39700 | 125mm (5”) | 125mm (5”) | Brushed Bronze | SS 304 | No | 3320 |
| 39720 | 150mm (6”) | 150mm (6”) | Brushed | SS 304 | No | 1550 |
| BL 39720 | 150mm (6”) | 150mm (6”) | Matt Black | SS 304 | No | 1880 |
| BG 39720 | 150mm (6”) | 150mm (6”) | Gold PVD Brushed | SS 304 | No | 2850 |
Features
- Top part can be lifted by using an allenkey up to 4 mm or screw driver.
- It has cockroach trap as well.
- The drain able area is 26 cm square.
- Its drainage capacity is 24 ltrs per minute
Benefits
- The tile marble drain consists cockroach trap, purposely used to hold water, which helps to prevent sewer odors from escaping into the building.
- It useful to block cockroaches from making their way up into floor drains.
HSN Code73269030
Warranty10 yearsFrequently Asked Questions
- Question: What if Tile/Marble thickness is more than its available in drain?
- Answer: Grind the tile or marble to adjust to the depth in the drain.
- Question: How much thickness should be required for placing Tile/Marble Drain?
- Answer: The depth of Tile/Marble Drain is 14.5mm and thickness must be adjusted accordingly.
Overview
Features
- Top part can be lifted by using an allenkey up to 4 mm or screw driver.
- It has cockroach trap as well.
- The drain able area is 26 cm square.
- Its drainage capacity is 24 ltrs per minute
Benefits
- The tile marble drain consists cockroach trap, purposely used to hold water, which helps to prevent sewer odors from escaping into the building.
- It useful to block cockroaches from making their way up into floor drains.
HSN Code73269030
Warranty10 years
Frequently Asked Questions
- Question: What if Tile/Marble thickness is more than its available in drain?
- Answer: Grind the tile or marble to adjust to the depth in the drain.
- Question: How much thickness should be required for placing Tile/Marble Drain?
- Answer: The depth of Tile/Marble Drain is 14.5mm and thickness must be adjusted accordingly.

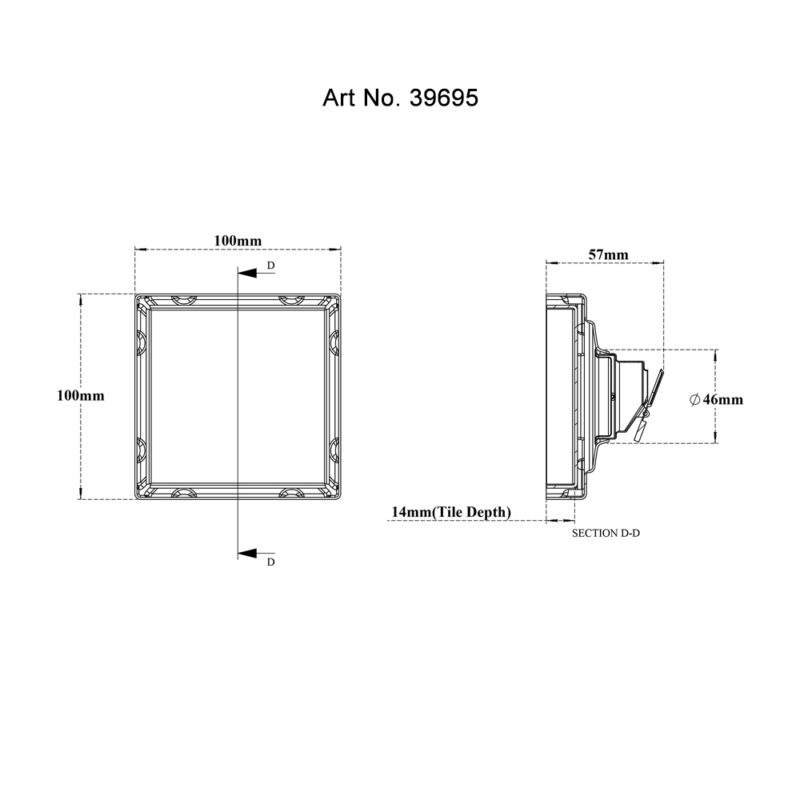

Line Drawings
Replacement Parts
