Tile/Marble Shower Channel DrainNEW
| Art No. | Length | Width | Finish | Material | Drain Capacity | Centre/Side Hole | ₹ |
|---|---|---|---|---|---|---|---|

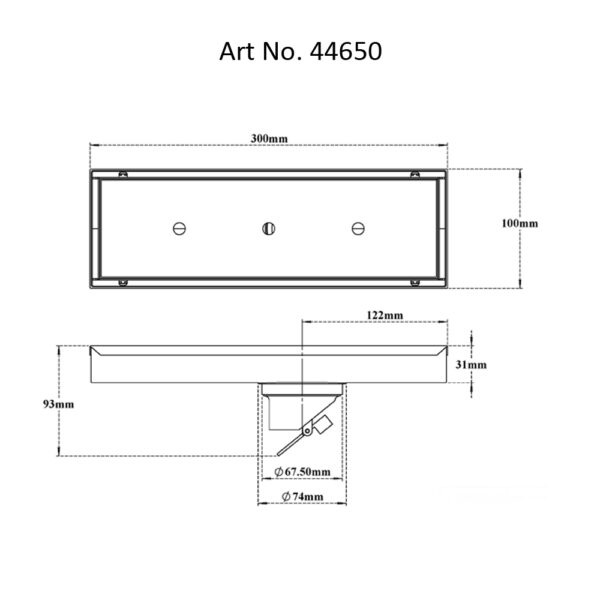

| 44650 | 300mm (12”) | 100mm (4″) | Brushed | SS 304 | 38 Ltr/min | Side Hole | 3290 |

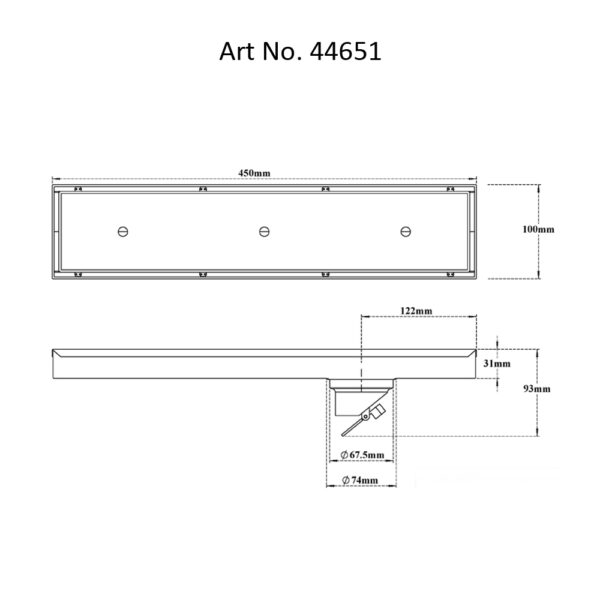

| 44651 | 450mm (18”) | 100mm (4″) | Brushed | SS 304 | 38 Ltr/min | Side Hole | 3990 |
| 44652 | 600mm (24”) | 100mm (4″) | Brushed | SS 304 | 38 Ltr/min | Side Hole | 4990 |

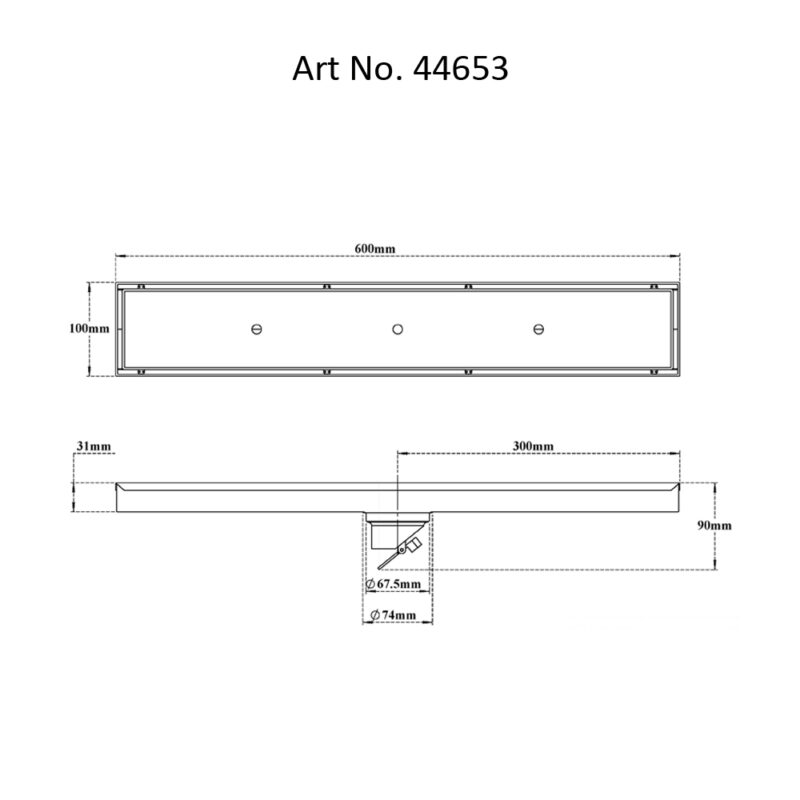

| 44653 | 600mm (24”) | 100mm (4″) | Brushed | SS 304 | 38 Ltr/min | Centre Hole | 4990 |
| BL 44653 | 600mm (24”) | 100mm (4″) | Black Matt | SS 304 | 38 Ltr/min | Centre Hole | 9350 |

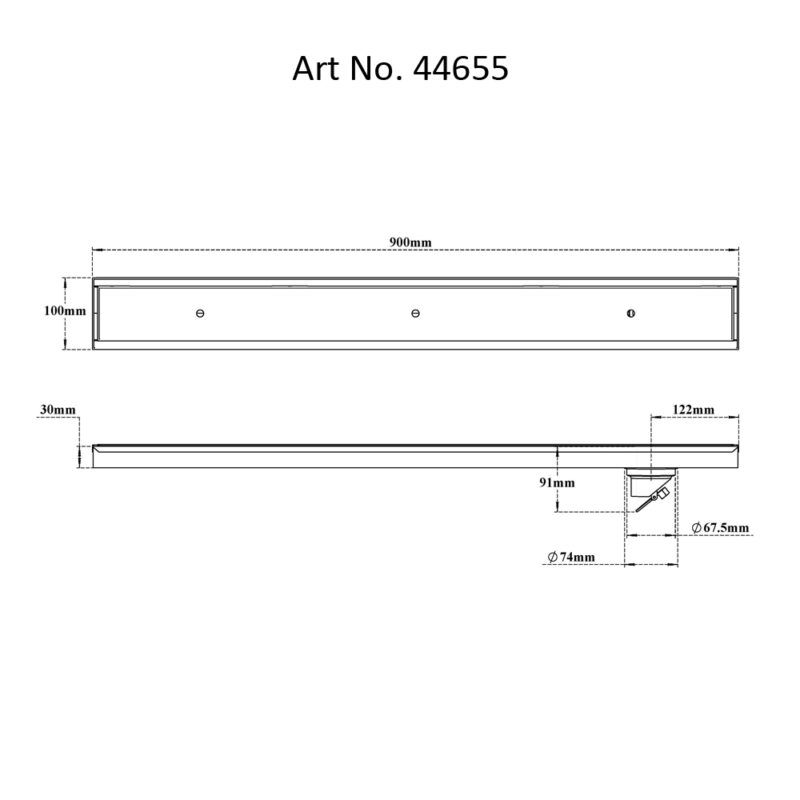

| 44655 | 900mm (36”) | 100mm (4″) | Brushed | SS 304 | 40 Ltr/min | Side Hole | 7490 |
| BG 44655 | 900mm (36”) | 100mm (4″) | Gold PVD Brushed | SS 304 | 40 Ltr/min | Side Hole | 12990 |
| BRG 44655 | 900mm (36”) | 100mm (4″) | Rose Gold Brushed | SS 304 | 40 Ltr/min | Side Hole | 12990 |
| BFG 44655 | 900mm (36”) | 100mm (4″) | French Gold Brushed | SS 304 | 40 Ltr/min | Side Hole | 12990 |
| BL 44655 | 900mm (36”) | 100mm (4″) | Matt Black | SS 304 | 40 Ltr/min | Side Hole | 9480 |

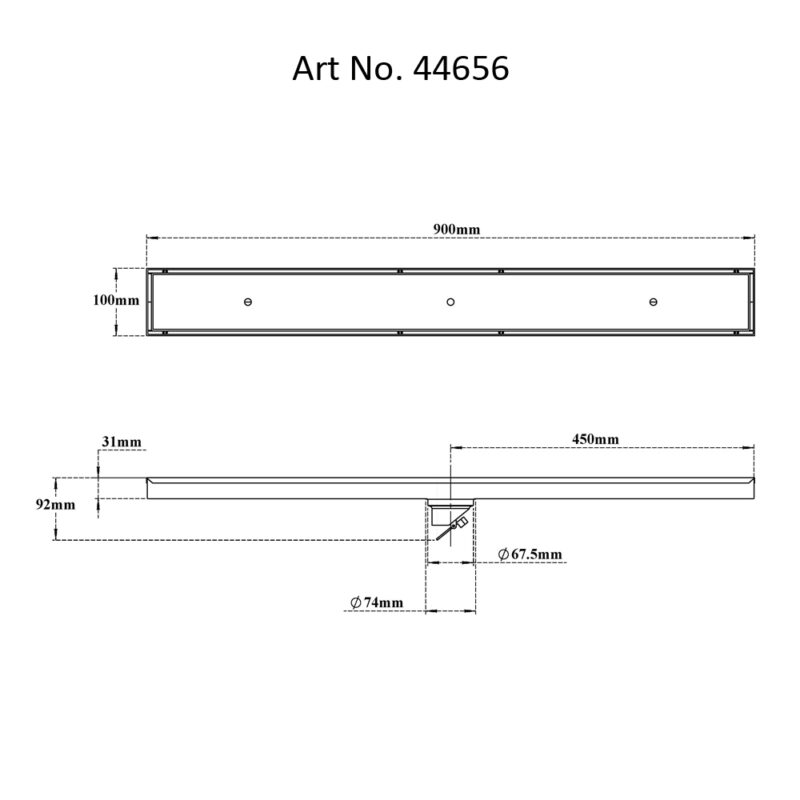

| 44656 | 900mm (36”) | 100mm (4″) | Brushed | SS 304 | 40 Ltr/min | Centre Hole | 7490 |
| BG 44656 | 900mm (36”) | 100mm (4″) | Gold PVD Brushed | SS 304 | 40 Ltr/min | Centre Hole | 12990 |
| BRG 44656 | 900mm (36”) | 100mm (4″) | Rose Gold Brushed | SS 304 | 40 Ltr/min | Centre Hole | 12990 |

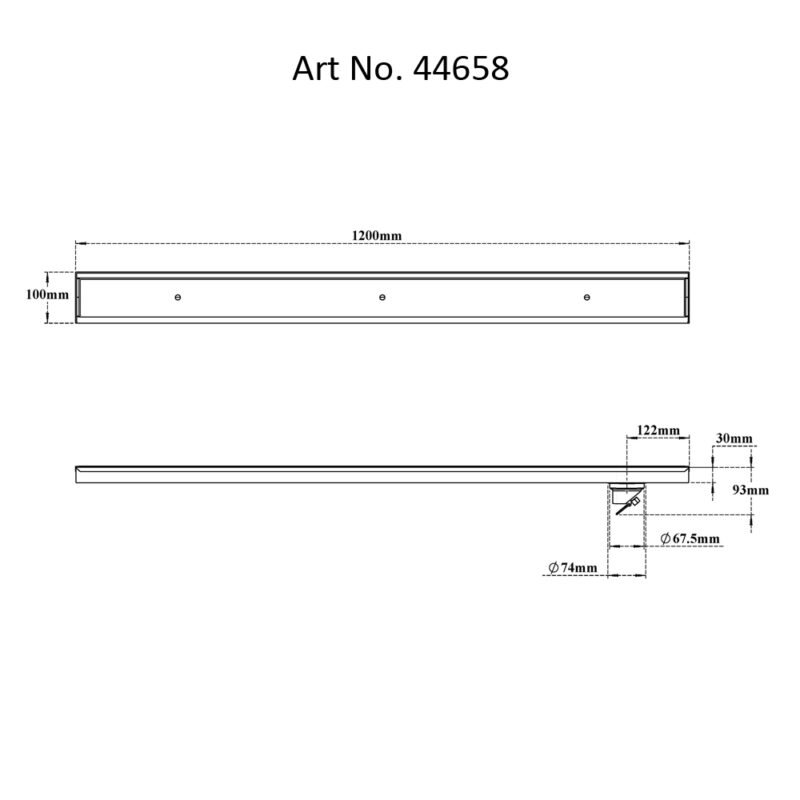

| 44658 | 1200mm (48”) | 100mm (4″) | Brushed | SS 304 | 40 Ltr/min | Side Hole | 9990 |

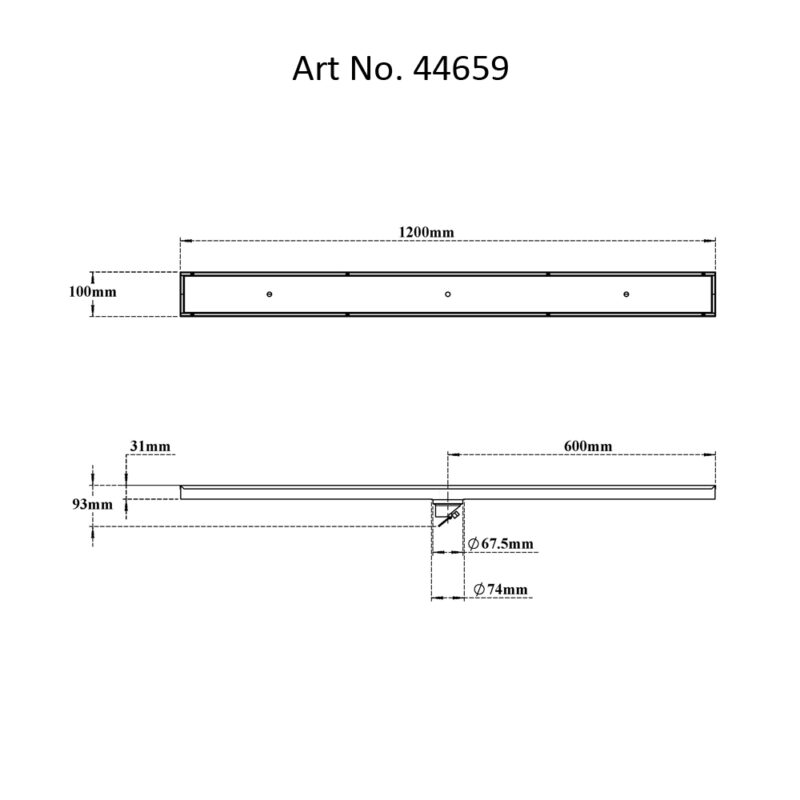

| 44659 | 1200mm (48”) | 100mm (4″) | Brushed | SS 304 | 40 Ltr/min | Centre Hole | 9990 |
Tile/Marble Shower Channel DrainNEW
| Art No. | Length | Width | Finish | Material | Drain Capacity | Centre/Side Hole | ₹ |
|---|---|---|---|---|---|---|---|
| 44650 | 300mm (12”) | 100mm (4″) | Brushed | SS 304 | 38 Ltr/min | Side Hole | 3290 |
| 44651 | 450mm (18”) | 100mm (4″) | Brushed | SS 304 | 38 Ltr/min | Side Hole | 3990 |
| 44652 | 600mm (24”) | 100mm (4″) | Brushed | SS 304 | 38 Ltr/min | Side Hole | 4990 |
| 44653 | 600mm (24”) | 100mm (4″) | Brushed | SS 304 | 38 Ltr/min | Centre Hole | 4990 |
| BL 44653 | 600mm (24”) | 100mm (4″) | Black Matt | SS 304 | 38 Ltr/min | Centre Hole | 9350 |
| 44655 | 900mm (36”) | 100mm (4″) | Brushed | SS 304 | 40 Ltr/min | Side Hole | 7490 |
| BG 44655 | 900mm (36”) | 100mm (4″) | Gold PVD Brushed | SS 304 | 40 Ltr/min | Side Hole | 12990 |
| BRG 44655 | 900mm (36”) | 100mm (4″) | Rose Gold Brushed | SS 304 | 40 Ltr/min | Side Hole | 12990 |
| BFG 44655 | 900mm (36”) | 100mm (4″) | French Gold Brushed | SS 304 | 40 Ltr/min | Side Hole | 12990 |
| BL 44655 | 900mm (36”) | 100mm (4″) | Matt Black | SS 304 | 40 Ltr/min | Side Hole | 9480 |
| 44656 | 900mm (36”) | 100mm (4″) | Brushed | SS 304 | 40 Ltr/min | Centre Hole | 7490 |
| BG 44656 | 900mm (36”) | 100mm (4″) | Gold PVD Brushed | SS 304 | 40 Ltr/min | Centre Hole | 12990 |
| BRG 44656 | 900mm (36”) | 100mm (4″) | Rose Gold Brushed | SS 304 | 40 Ltr/min | Centre Hole | 12990 |
| 44658 | 1200mm (48”) | 100mm (4″) | Brushed | SS 304 | 40 Ltr/min | Side Hole | 9990 |
| 44659 | 1200mm (48”) | 100mm (4″) | Brushed | SS 304 | 40 Ltr/min | Centre Hole | 9990 |
(Outlet Type : Vertical)
HSN Code73269030
Frequently Asked Questions
- Question: What if Tile/Marble thickness is more than its available in drain?
- Answer: Grind the tile or marble to adjust to the depth in the drain.
- Question: How much thickness should be required for placing Tile/Marble Shower Channel Drain?
- Answer: The depth of Tile/Marble Shower Channel Drain is 18.5mm and thickness must be adjusted accordingly.
- Question : What is the Flow Rate of 44652 Tile Marble Shower Channel Drain size-600mm (24")?
- Answer : The Flow Rate of 44652 Tile Marble Shower Channel Drain is around 30 Ltrs.
Overview
(Outlet Type : Vertical)
HSN Code73269030
Frequently Asked Questions
- Question: What if Tile/Marble thickness is more than its available in drain?
- Answer: Grind the tile or marble to adjust to the depth in the drain.
- Question: How much thickness should be required for placing Tile/Marble Shower Channel Drain?
- Answer: The depth of Tile/Marble Shower Channel Drain is 18.5mm and thickness must be adjusted accordingly.
- Question : What is the Flow Rate of 44652 Tile Marble Shower Channel Drain size-600mm (24")?
- Answer : The Flow Rate of 44652 Tile Marble Shower Channel Drain is around 30 Ltrs.

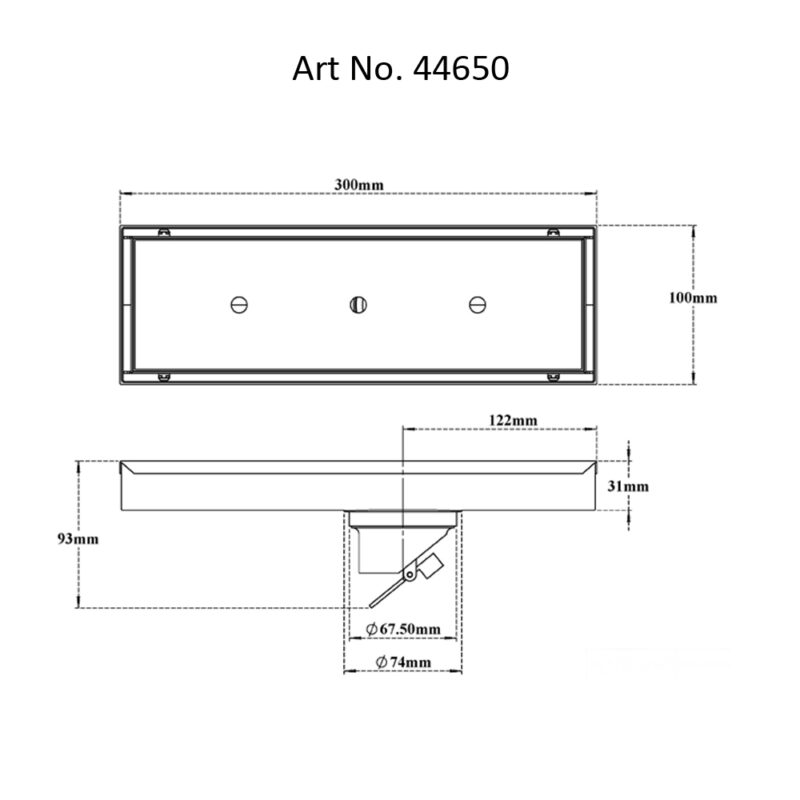

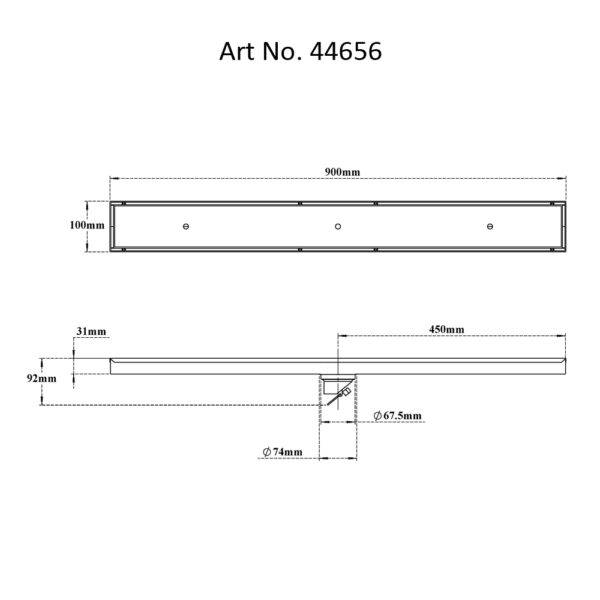

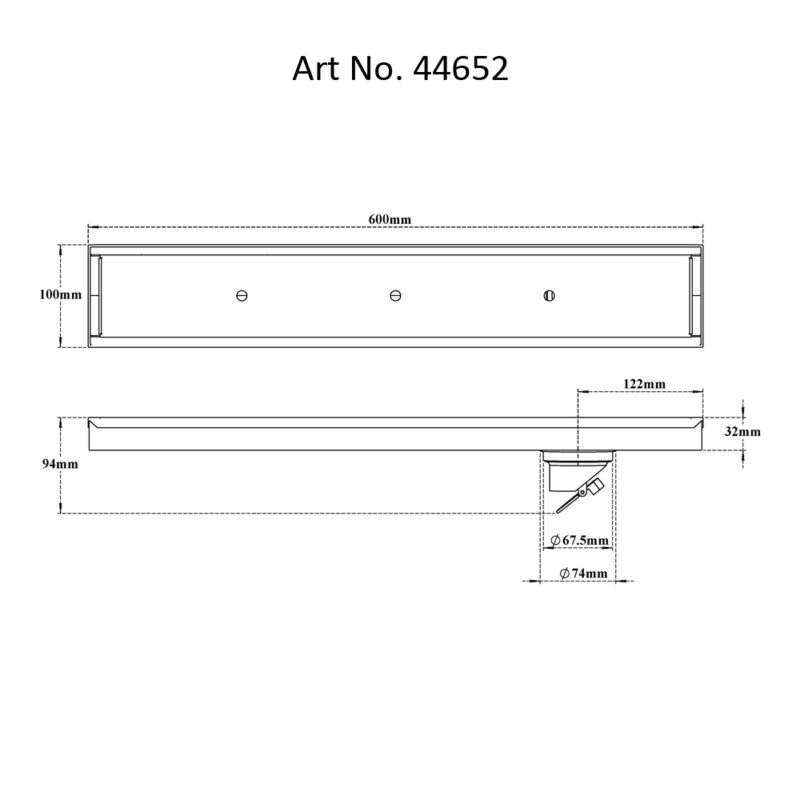

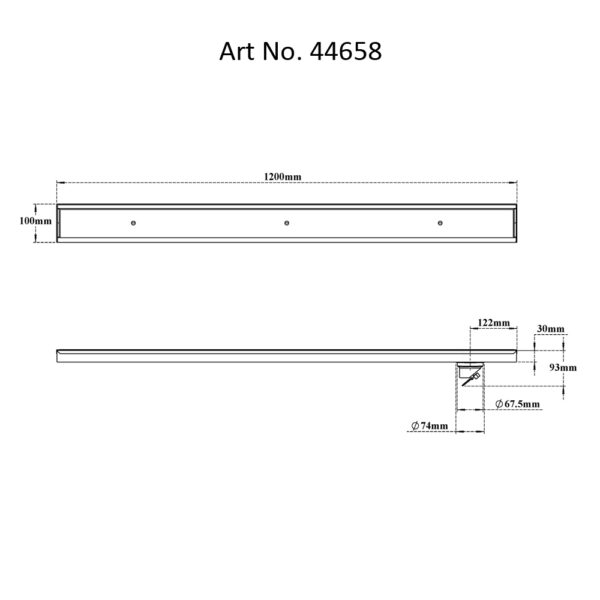

Line Drawings
Instructions
You may also like

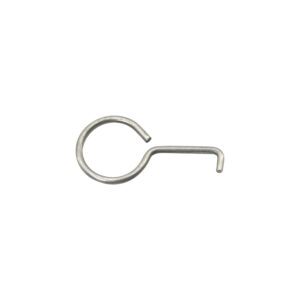

Replacement Parts
